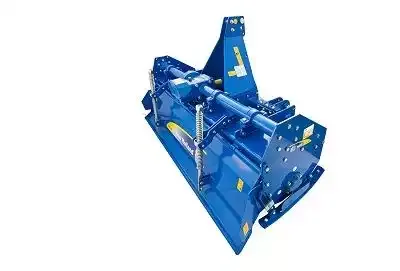

The HD Series Rotavator is engineered for maximum tillage depth and long life. It features a multi-speed gear box, high swing diameter for better soil pulverization, and twin-faced (MTF) metal seals for waterproofing — making it ideal for puddling.
The implement uses side gear drive transmission, high-quality PTO shaft with shear bolt protection, and CED coating for enhanced durability.
Key Specifications
| Specification | Range |
|---|---|
| Working Width | 1543–2233 mm |
| Blades | 48–60 |
| Weight | 445–500 kg |
| Tractor HP Required | 35–60 HP |
| Swing Diameter | 500 mm |
| Blade Type | L/C Type |
| Drive System | Multi-speed, side gear drive |
| Blade Thickness | 7 mm |
| PTO RPM | 540 |
| Rotor RPM | 172–269 (depending on gear ratio) |
