The CASE 952NX Vibratory Compactor represents a new era in road construction technology, combining power, precision, and innovation. Powered by a 54.6 kW (74 HP) F28 CEV Stage-V engine, it ensures cleaner emissions and fuel-efficient operation with a DOC+DPF system.
This model offers two vibration stages, high compaction force (up to 121.6 kN), and balanced load distribution for optimal performance. The integrated telematics system provides real-time insights into machine health, productivity, and fleet management — an industry-first for compactors in its class.

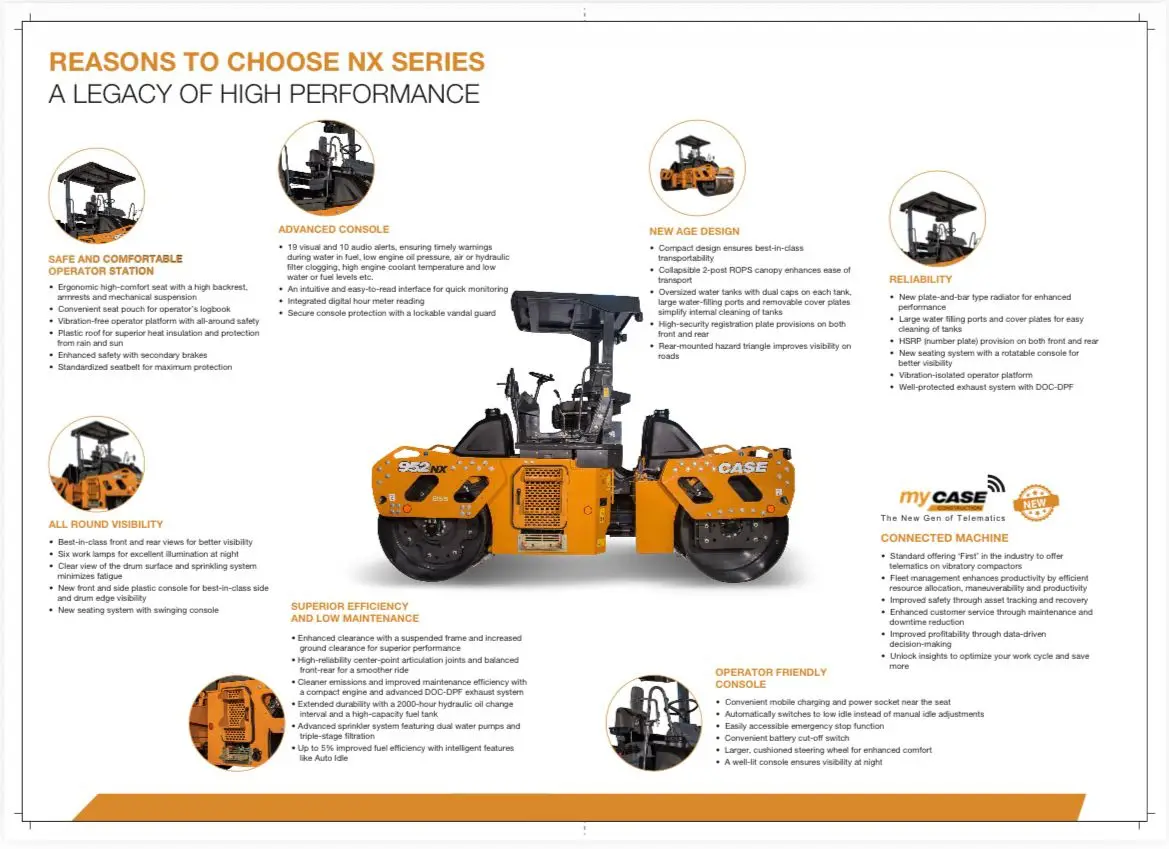

Operator comfort is elevated through an ergonomic seat, low-vibration platform, and intuitive console with mobile charging, emergency stop, and visibility-enhancing lighting. Maintenance is simplified with an auto idle feature, dual water pumps, triple-stage filtration, and 2000-hour hydraulic oil change interval.
From its compact transport-friendly design to its advanced safety features like ROPS canopy, high rear visibility, and secondary braking, the CASE 952NX delivers superior reliability, safety, and efficiency for every job site.

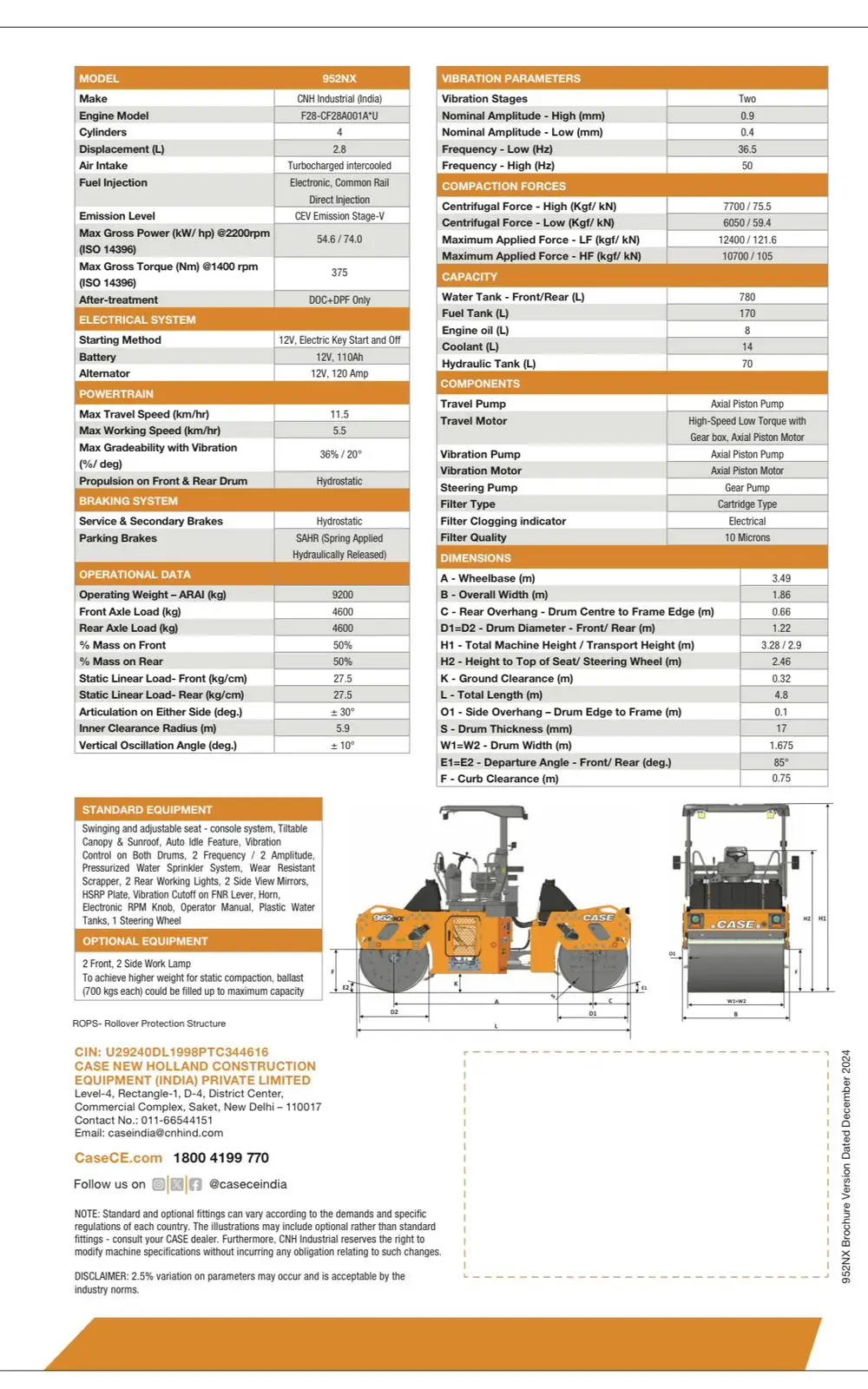

| Feature | Specification |
|---|---|
| Engine Power | 74 HP (54.6 kW) @ 2200 rpm |
| Operating Weight | 9,200 kg |
| Vibration Frequency | 36.5 – 50 Hz |
| Amplitude (High/Low) | 0.9 mm / 0.4 mm |
| Centrifugal Force (High/Low) | 121.6 kN / 105 kN |
| Speed | Up to 11.5 km/h |
| Gradeability | 36% |
| Fuel Tank Capacity | 170 L |
| Water Tank Capacity | 780 L |
| Emission Standard | CEV Stage-V |
| Telematics | Standard (CASE Connected Fleet) |
| Safety | ROPS canopy, emergency stop, seatbelt |
| Comfort Features | Auto idle, vibration isolation, ergonomic controls |
