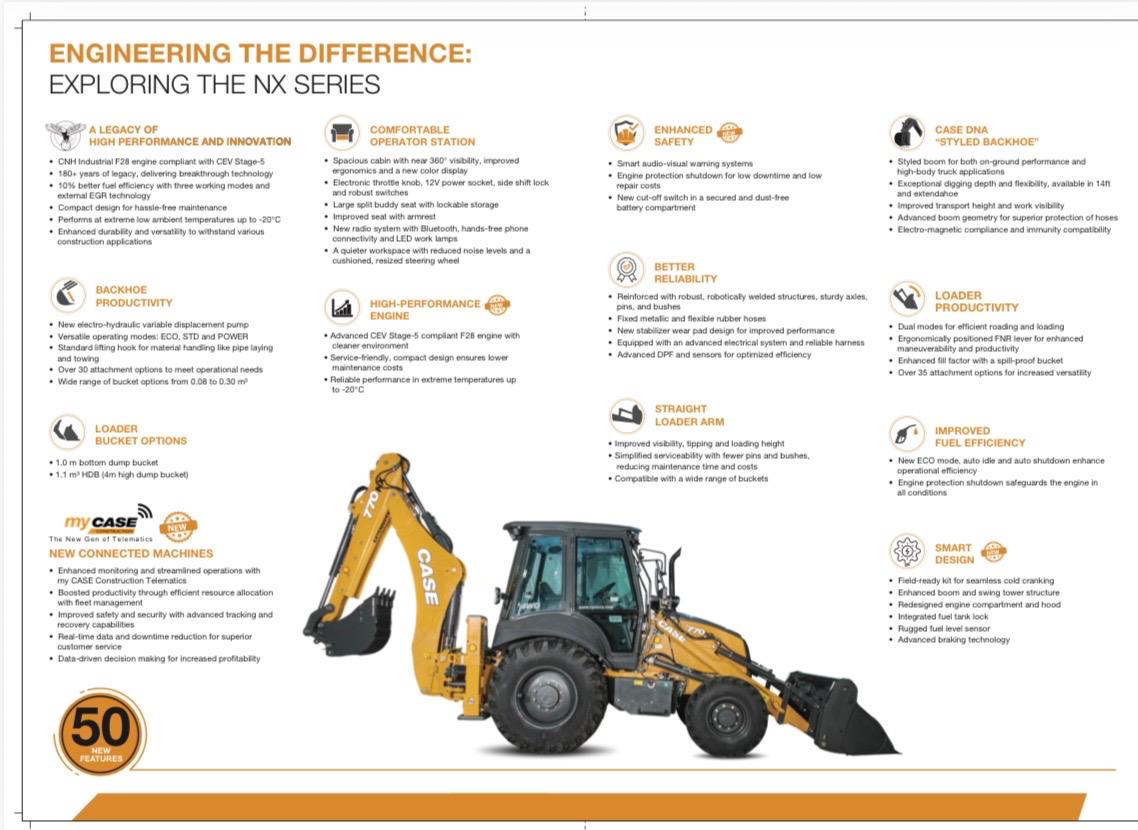

The CASE 770NX CEV5 Backhoe Loader sets new benchmarks for productivity, reliability, and operator comfort in the construction equipment industry. Powered by a turbocharged, emission-compliant 4-cylinder F28 engine (74 HP), it delivers excellent performance across challenging environments, including up to -20°C. Its electro-hydraulic variable displacement pump, three selectable work modes (ECO, STD, POWER), and innovative features boost operational efficiency and fuel savings. The spacious operator station includes a 360° visibility cab, multiple storage and comfort enhancements, modern control interfaces, and robust safety systems for all-day productivity. With superior loader and backhoe geometry, heavy-duty chassis, and over 35 compatible attachments, the 770NX is engineered for a wide variety of demanding job sites.

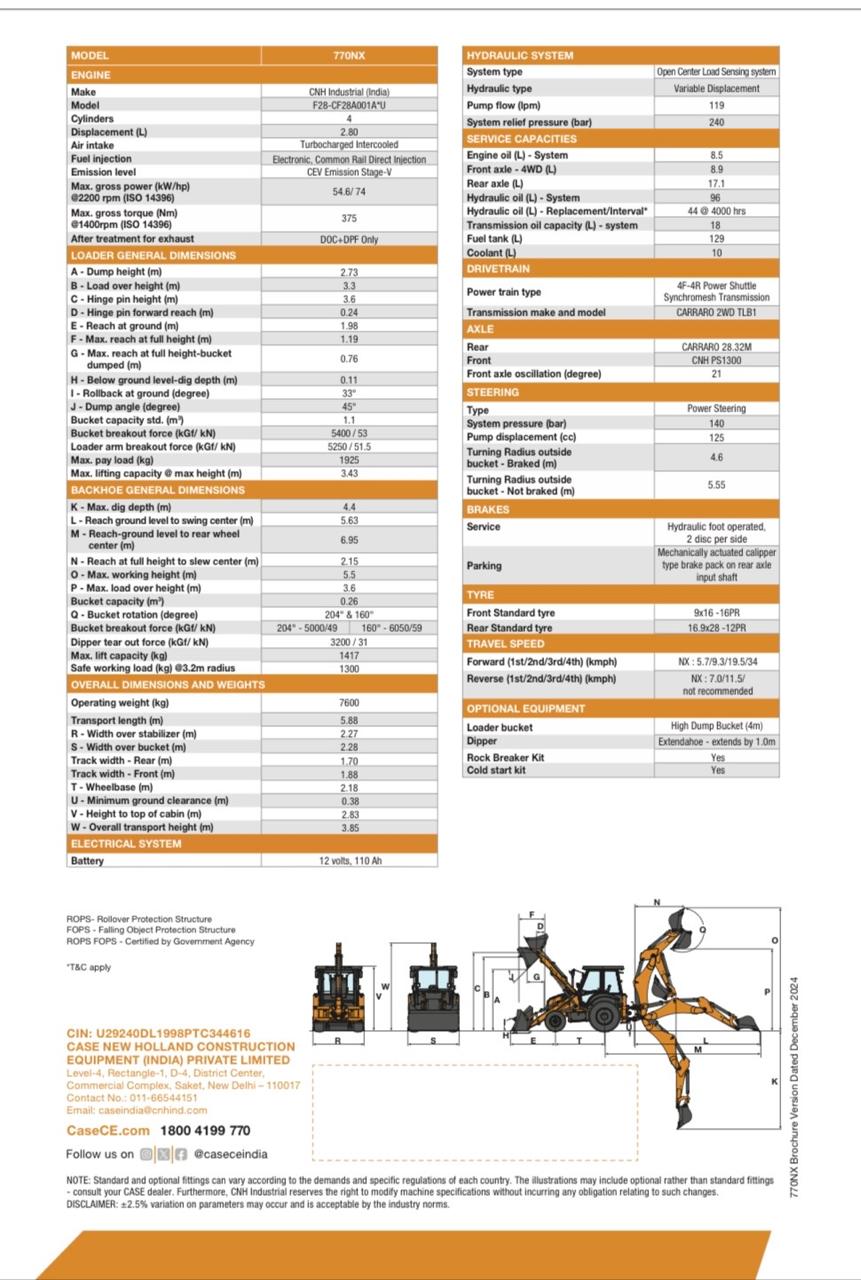

Key Specifications:

• Engine: 4-cylinder, 3.6 L, Turbocharged, 74 HP (CEV Stage-V)

• Max Gross Torque: 375 Nm @ 1400 rpm

• Hydraulic Pump: Variable displacement, 119 lpm, 240 bar

• Operating Weight: 7,600 kg

• Max. Backhoe Dig Depth: 4.4 m

• Max. Loader Dump Height: 2.73 m

• Loader Bucket Capacity: 1.1 m³ (high dump bucket option)

• Transmission: 4F-4R Power Shuttle, Synchromesh

• Fuel Tank Capacity: 145 L

• Advanced safety: ROPS/FOPS, audio-visual warning systems

• Ergonomics: Spacious cab, 12V socket, storage solutions, Bluetooth-enabled radio

This machine is ideal for infrastructure, road-building, agriculture, and urban construction projects demanding performance, operator safety, and reliability.​
